OPTIONAL HARDWARE
Tex-Lam’s Optional Hardware offerings give you the ability to upgrade your toilet compartment’s hardware to meet special specification needs. Special attention is always taken to assure any hardware changes are seamless to the order process.
Optional Series 100
Chrome Plated Brass Hardware
Hinges are recessed heavy duty, chrome plated brass, non-handed with a gravity type cam action. Latching is accomplished by means of a heavy-duty chrome plated brass surface mounted latch. All wall and “U” brackets are chrome-plated brass.

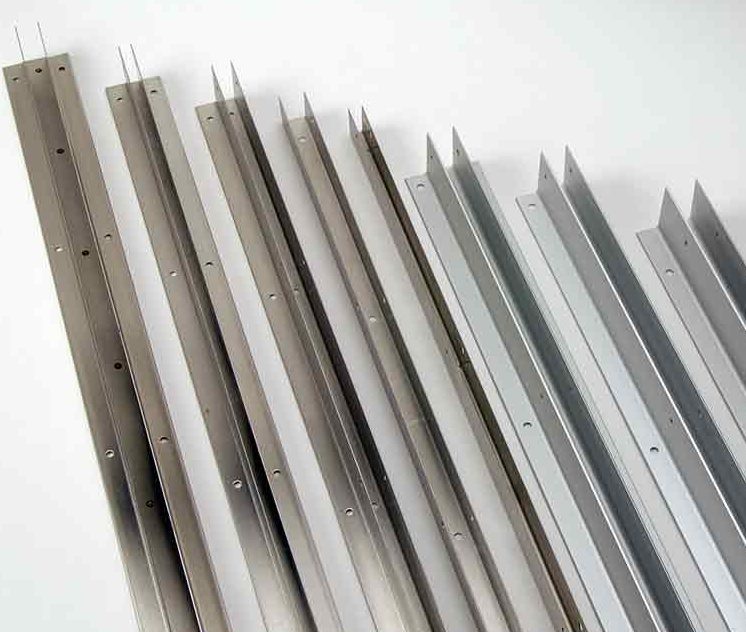

Optional Series 210A
Full Length Aluminum Brackets
Mounting brackets are heavy-duty full-length extruded aluminum, all wall brackets secured to wall at 12-inch centers. Fasteners are chrome-plated steel or stainless steel depending on project specification.
Optional Series 220S
Full Length Stainless Steel
Brackets are one piece full-length 18-gauge stainless steel hemmed together to form a continuous “T” or “L” bracket for maximum mounting strength.

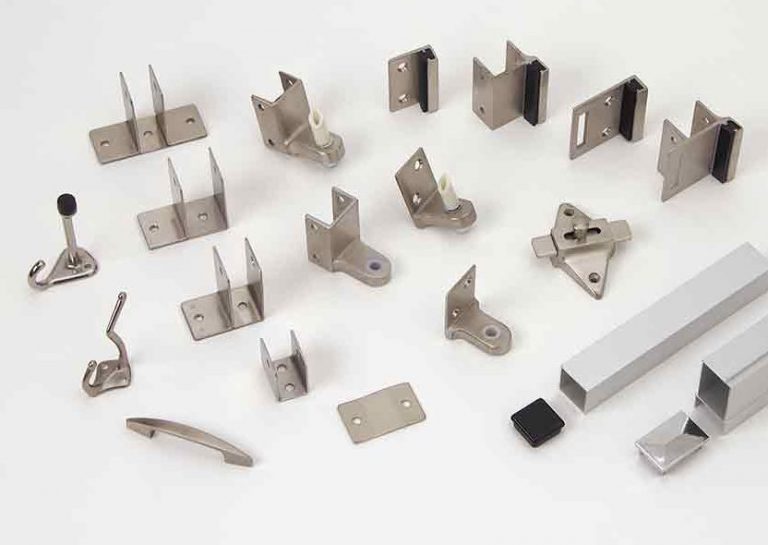

Optional Series 300
Cast Stainless Steel Hinges
Hinges are recessed heavy-duty cast stainless steel, fully adjustable with a gravity type cam action. Latching is accomplished by means of a surface mounted cast stainless steel latch. All mounting brackets are formed 14-gauge (type 304) satin finish stainless steel. All fasteners shall be stainless steel.

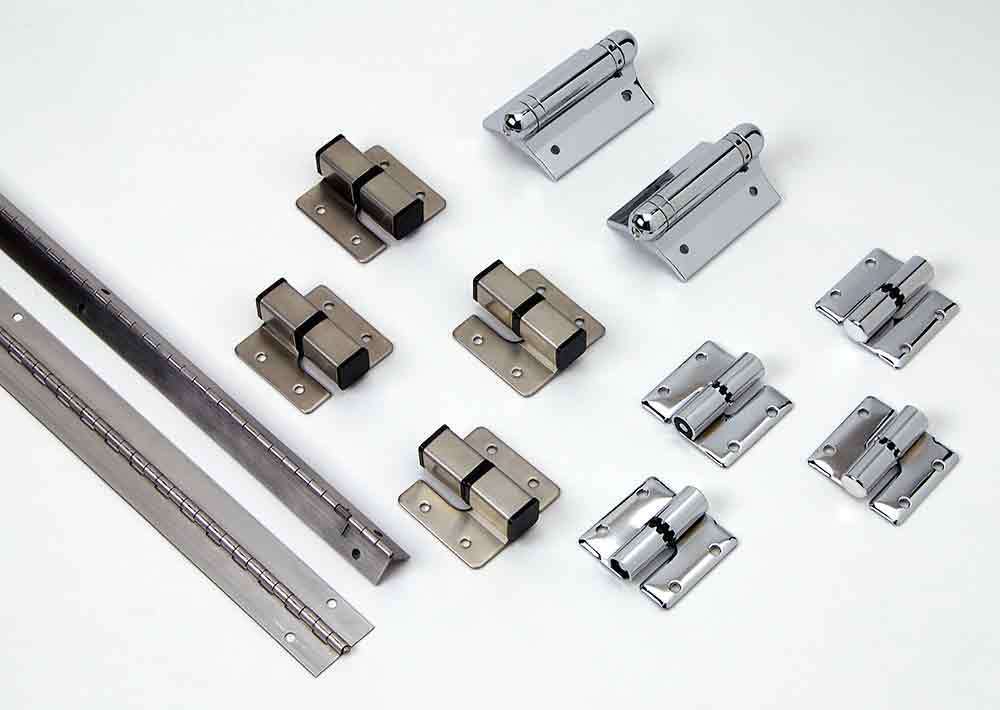

Optional Series 400
Surface Mounted Hinges
Wide ranges of surface mounted hinges are available to meet your specifications and retrofit applications. Choose from Tex-Lam #420 stainless steel surface mounted with cam, #430 chrome plated brass surface mounted with cam, #450 stainless steel piano hinge with emergency access or #470 aluminum square barrel wrap-around hinges.
Optional Series 500

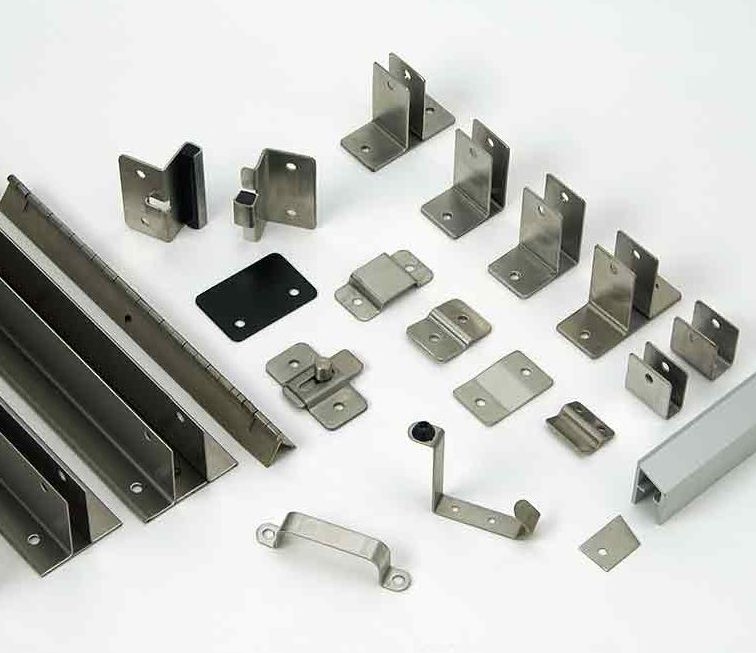

Stainless Steel Heavy Duty
Institutional hardware hinges are 18-gauge surface mounted continuous piano hinges 2-inch wide, with 1/8-inch diameter pin (type 304) in a satin finish stainless steel to run the full height of the door, non-handed, with no cam action. Latching is accomplished by means of a surface mounted 11-gauge stainless steel slide latch that latches into an 11-gauge heavy-duty keeper. Doors are mounted with two poly coated 14-gauge doorstops. A stainless steel coat hook and bumper are furnished with each door. The 18-gauge stainless steel wall brackets are hemmed together to form a continuous “T” or “L” bracket for maximum mounting strength.
